Yeastar

These instructions help you configure your Asterisk phone system to work with TIM Plus. Contact your system maintainer if you are not familiar with the configuration of your PBX.

Support files​

Ensure the following support files exist in the /config/ folder of the TIM Plus application:

Yeastar.TDS
Yeastar.TDT

Contents​

Configuring the SMDR output​

info

You may need to purchase a license to enable SMDR on this PBX. Please speak to your system maintainer if you are unsure.

Follow the steps below to enable the SMDR output on your Yeastar phone system:

  1. Enter the Enable AMI on S100 and setup the permitted host/IP to access AMI. by browsing to Settings -> System -> Security -> Service

  2. Scroll down to Enable AMI and tick the box.

  3. Enter your username and password into their respective fields.

  4. Enter the IP address of the TIM Plus machine and the Subnet Mask of the TIM Plus machine into their respective fields.

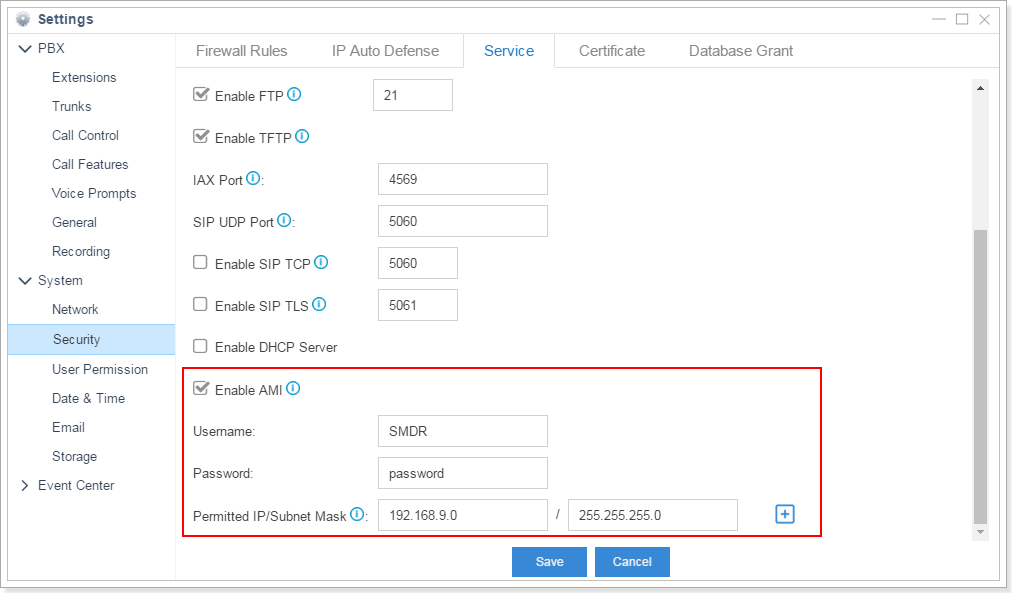

  5. Your settings should look similar to the below screenshot:

Yeastar config

Configuring TIM Plus​

Follow the steps below to configure TIM Plus to connect to your Yeastar:

  1. Click on the Directory tab.
  2. If you don't have a site set up, press Add and select PBX from the drop-down menu. In the dialogue window, name your site and then select Add.

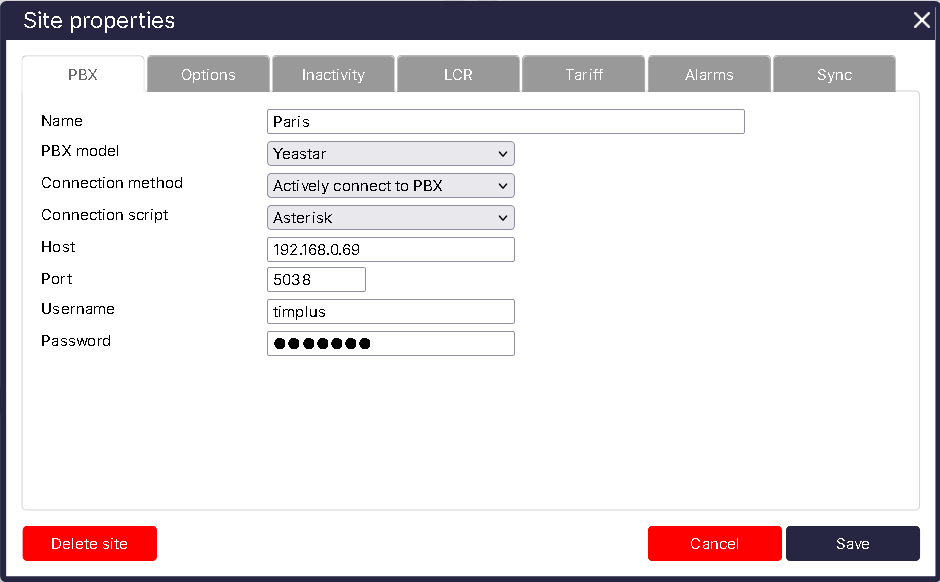

TIM Plus PBX Connection Properties

  1. In the Site Properties window, select Yeastar from the PBX model drop-down list.
  2. In the Connection method field, select Actively connect to PBX from the drop-down list.
  3. In the Host field, enter the IP address of your Yeastar phone system.
  4. In the Port field, enter 5038.
  5. In the Username and Password fields, enter your username and password accordingly.
  6. In the Connection script field, select Asterisk from the drop-down list.
  7. Click on the 'Options' tab and tick the Keep a local backup of any data tickbox, as shown below

TIM Plus PBX backup options

  1. Click on the Save button to apply the settings.
